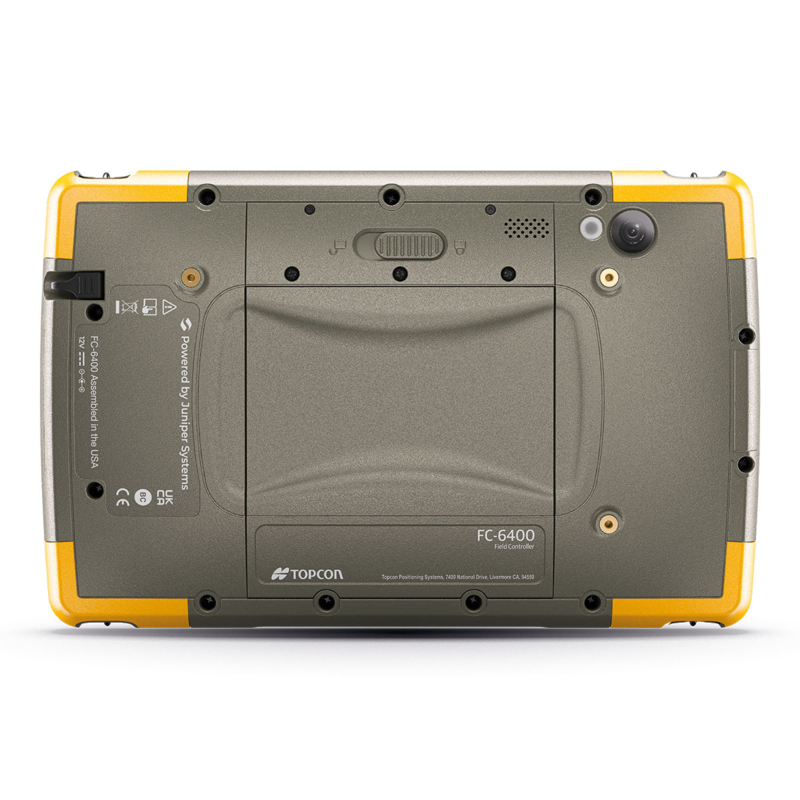

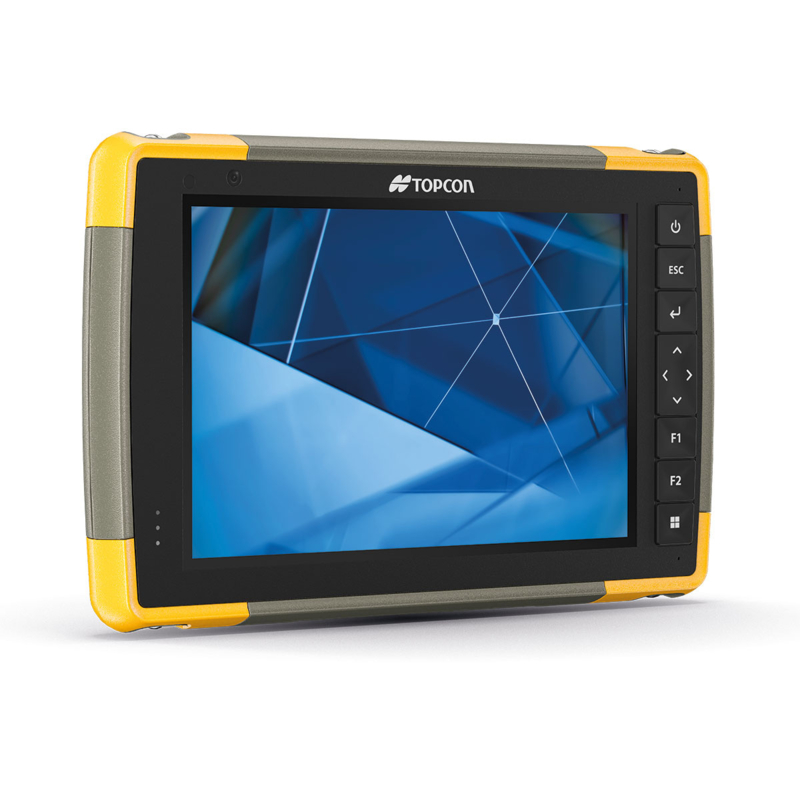

Topcon Sokkia FC-6400

Topcon FC-6400

streamlines precision survey and construction tasks with its high-performance workflows, lightweight mobility, and user-friendly design. Its advanced processing speed and graphics enable seamless data management and visualization, enhancing the efficiency of operating Topcon field software and beyond. • Windows® 11 operating system • Clear display viewable even in bright sunlight • Rugged IP68 and MIL-STD-810H ratings • Available with extended range LongLink™️ Bluetooth® • Long-lasting, hot-swappable battery with internal backup.

CPU Intel® N200 3.7GHz Internal Storage 128GB SSD or 256GB SSD Micro SD Card Storage Yes OS Windows® 11 Pro Memory 16 GB LPDDR5 RAM Display 7” LCD touch screen Wide XGA at 1280 x 800 Brightness: 800 nit Camera Rear: 13 megapixel with auto-focus and flash Front: 5 megapixel Internal GNSS Quectel LC79H Ports USB-A USB-C Charger AC adapter or USB-C Dimensions (L x W x H) 21.5 x 13.7 x 3.5 cm 8.46 x 5.39 x 1.38 in. Weight 680g (1.5 lbs) without swappable battery WIRELESS CONNECTIVITY Bluetooth® Bluetooth® Class 1.5 or Extended Range Topcon LongLink™️ Bluetooth® Wi-Fi 802.11 a/b/g/n/ac/ax, FIPS 140-2 Cellular Global GSM 4G LTE ENVIRONMENTAL Ingress protection Dust and water IP68 certification Operating Temp -20° C to 50° C -4° F to 122° F Vibration MIL-STD-810H Drop test 1.2 m (4 ft.) drops to concrete Operating Time Up to 15 hours

OPTIE:

External keyboard The optional keyboard is designed for on-the-fly installation and quickly snaps onto the FC-6400; no tools required.
